GIGABYTE Matična ploča Gigabyte AM5 X870E AORUS PRO ICE
0
(0)
Na stanju Samo 1 komad
Maloprodajna cena: 48.222 RSD
47.990 RSD
47.510 RSD uz uplatu na račun
Prednosti kupovine
Sigurna kupovina
Zaštićeno plaćanje i podaci
Povraćaj novca
14 dana bez rizika
Brza dostava
1-3 radna dana
Besplatna dostava
Preko 5.000 RSD
Informacije o proizvodu
Šifra artikla
15627
EAN
4719331864798
Brend
GIGABYTE
EAN4719331864798
LANRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
ModelGigabyte X870E AORUS PRO ICE AM5 DDR5 ATX Matična ploča
| EAN | 4719331864798 |
|---|---|
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| BIOS | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Model | Gigabyte X870E AORUS PRO ICE AM5 DDR5 ATX Matična ploča |
| Format | ATX |
| Bluetooth | 5.3 |
| M.2 portovi | 4x M.2 Socket 3 |
| USB portovi | CPU+ASMedia USB4 controller:- 2 x USB4 USB Type-C ports on the back panelCPU:- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panelChipset:- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| SATA portovi | 4x SATA 6Gb/s |
| Zvuk (Audio) | Realtek ALC1220 CODECThe back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channelYou can change the functionality of an audio jack using the audio software. To configure7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| Bežična mreža | Qualcomm Wi-Fi 7 QCNCM865- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- Support for 11be 320MHz wireless standard |
| Operativni sistem | Windows 11 |
| Prava potrošača | Zakonska saobraznost 2 godine |
| Tip memorije (RAM) | DDR5 |
| Posebne mogućnosti | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed controlNoise detectionSupport for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Podrška za memorije | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Podrška za procesore | AMD Ryzen 9000 Series ProcessorsAMD Ryzen 8000 Series ProcessorsAMD Ryzen 7000 Series Processors |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers2 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x SATA 6Gb/s connectors4 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x noise detection header1 x HDMI port (Note)1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)1 x power button1 x reset button2 x temperature sensor headers1 x reset jumper1 x Clear CMOS jumper |
| Skup čipova (Chipset) | AMD X870E |
| Slotovi za proširenja | 1x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 modeThe M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |

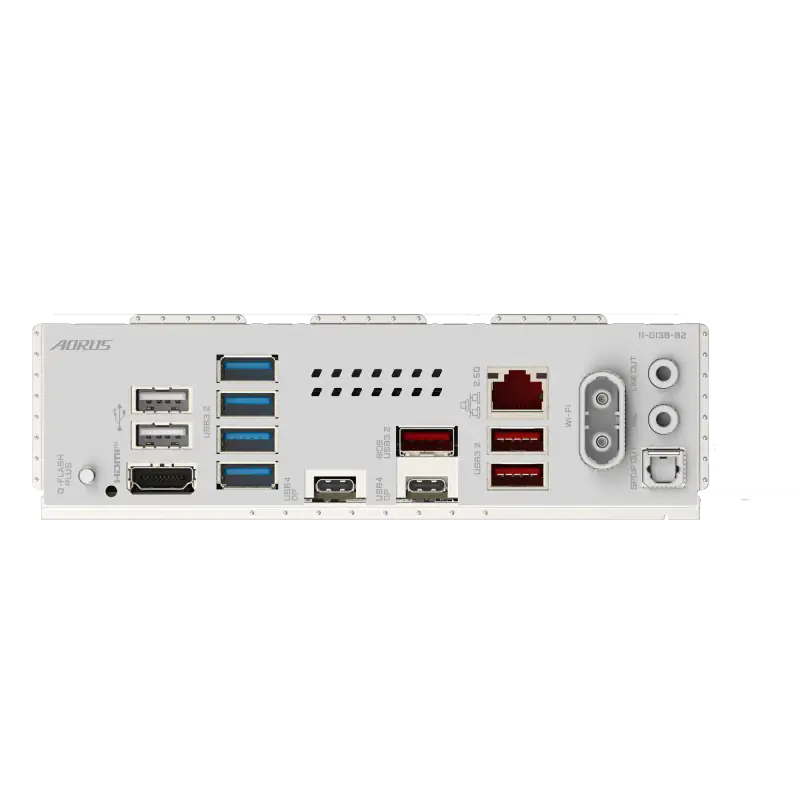

| Konektori na zadnjoj strani | 1 x Q-Flash Plus button2 x USB 2.0/1.1 ports1 x HDMI port (Note)4 x USB 3.2 Gen 1 ports2 x USB4 USB Type-C port (DisplayPort (Note))3 x USB 3.2 Gen 2 Type-A ports (red)1 x RJ-45 port2 x antenna connectors (2T2R)1 x optical S/PDIF Out connector2 x audio jacks |
| Čuvanje podataka - portovi | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supportingSocket 3, M key, type 22110/2280 SSDs:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsThe M2B_CPU and M2C_CPU connectors will become unavailable when using theAMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors.1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 5 is only available on AMD Ryzen 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Podrška za grafiku - portovi | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 240HzSupport for DisplayPort 1.4 version and HDR.Integrated Graphics Processor with AMD Radeon Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60HzSupport for HDMI 2.1 version, HDCP 2.3, and HDR.Support for native HDMI 2.1 TMDS compatible ports.- 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30HzSupport for HDMI 1.4 version |
| Procesorsko podnožje (Socket) | AMD Socket AM5 |
